Division Q with Simultaneity N with Volatility M
The coordination mechanism for this dependency is almost similar to that
of division Q + simultaneity N. The only difference is that we added place
Pm representing the volatility (and respective timeouts, optionally).
Figure 41 shows the coordination mechanism for Q =
2, N = 2 and M = 6. Figure 42 shows the coordination
mechanism modeled using high level PN (Q = 3, N = 2 and M = 4).

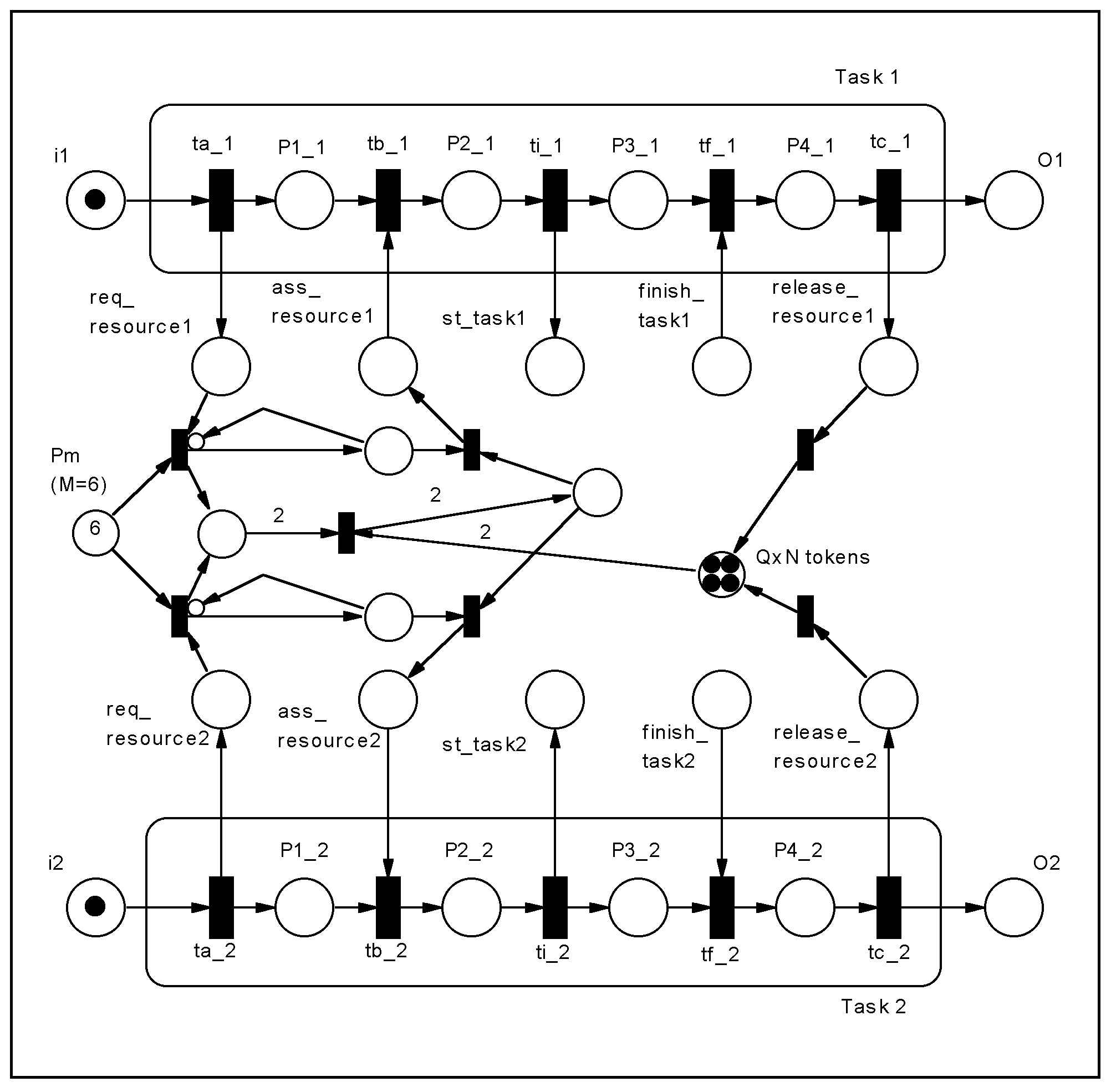

Figure 41: Division 2 + Simultaneity 2 + Volatility 6.

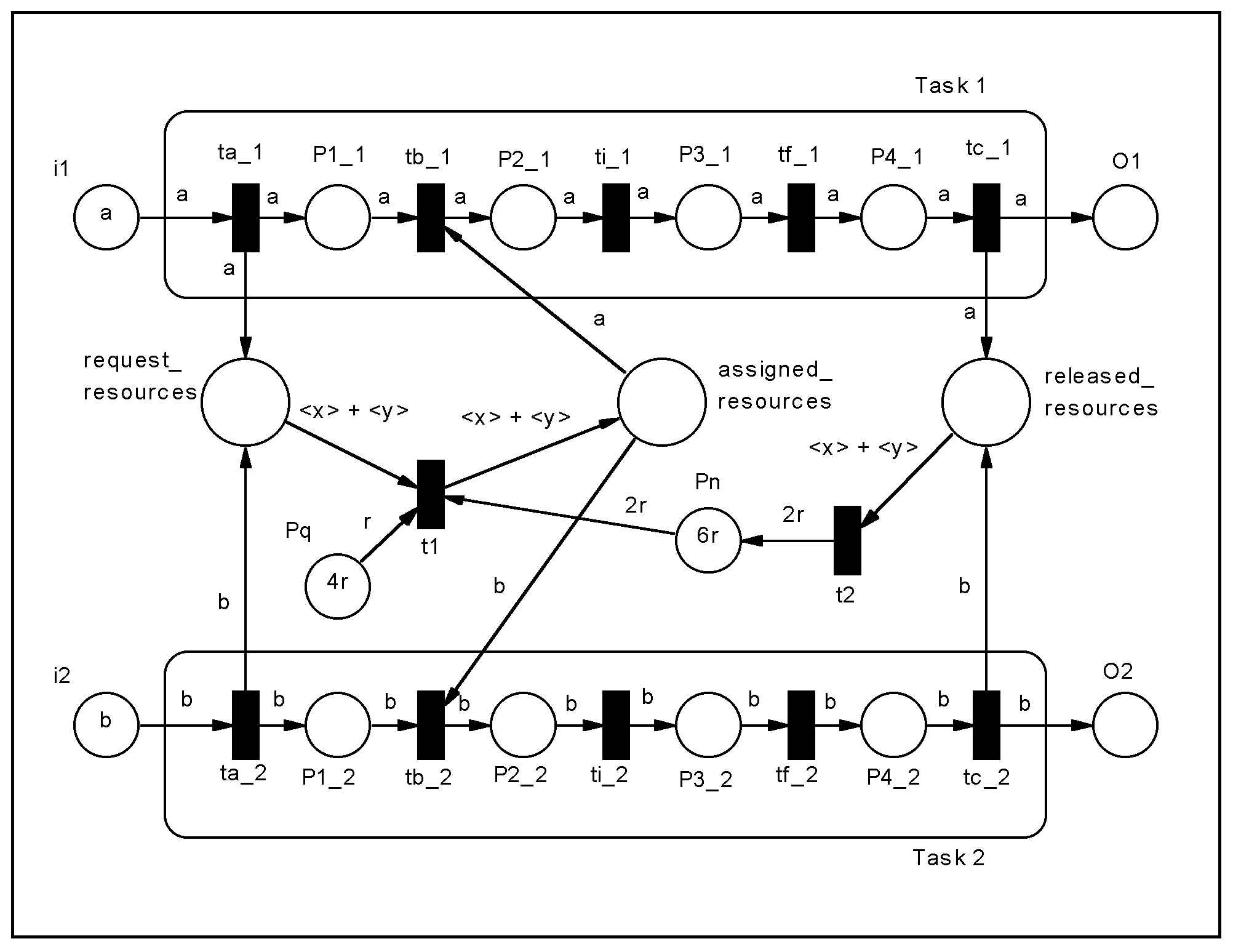

Figure 42: Division 3 + Simultaneity 2 + Volatility 4 using high
level PN.
