Division M with Volatility N
The coordination mechanism for this dependency is almost similar to that
of division M. The only difference is that we added place Pn representing
the volatility (and respective timeouts). Figure 38

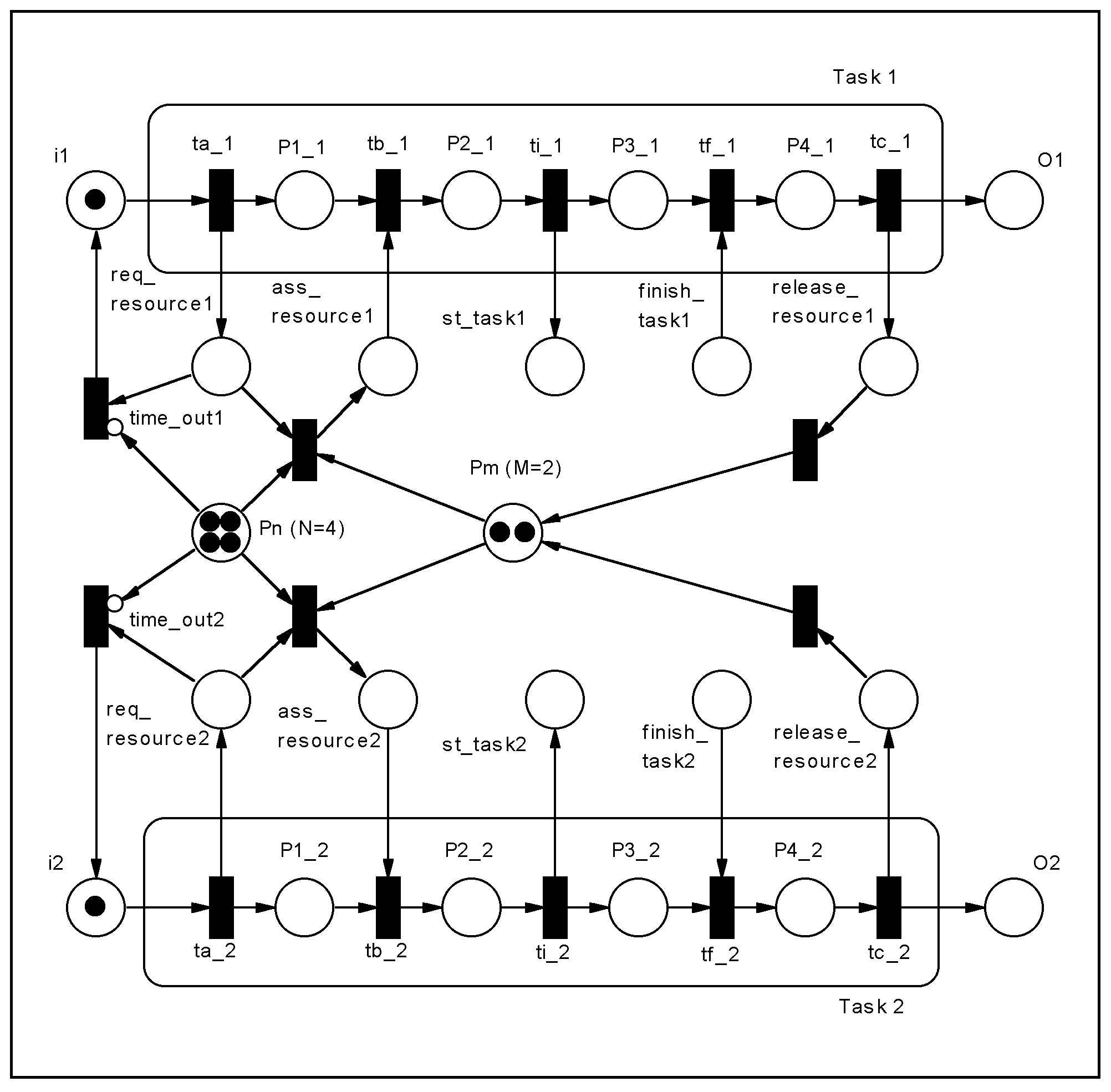

shows the coordination mechanism for M = 2 and N = 4. Figure

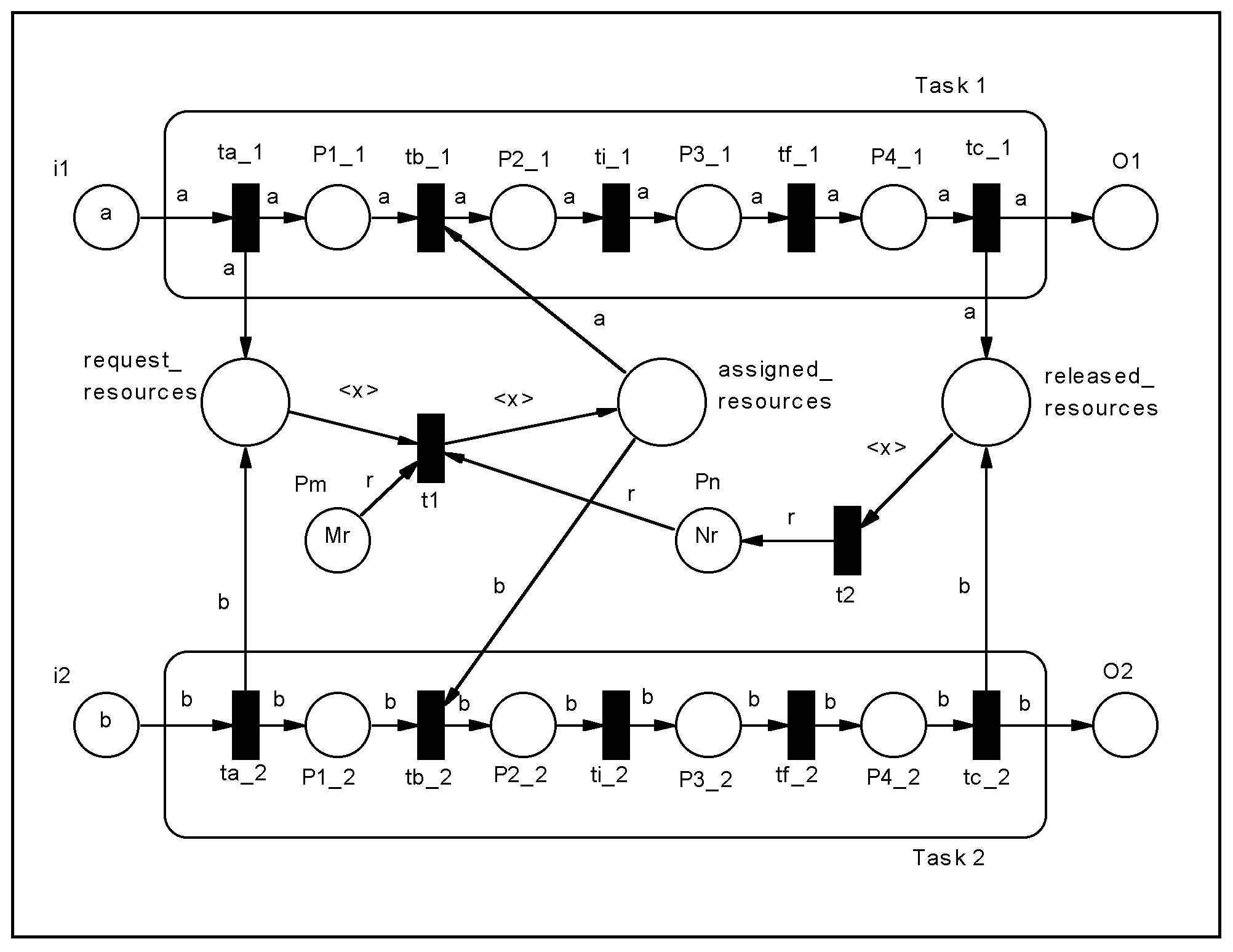

39 shows the coordination mechanism modeled using high level PN.
Figure 38: Division 2 + Volatility 4.
Figure 39: Division N + Volatility M using high level PN.
