Simultaneity N with Volatility M
The coordination mechanism for this dependency is almost similar to that
of simultaneity N, just adding place Pm regarding the volatility and respective
timeouts. Figure 40 shows this model for N = 2 and
M = 4. It is important to note that M is the number of times the resource
is going to be used, and not the number of groups of N tasks that is going
to use it.

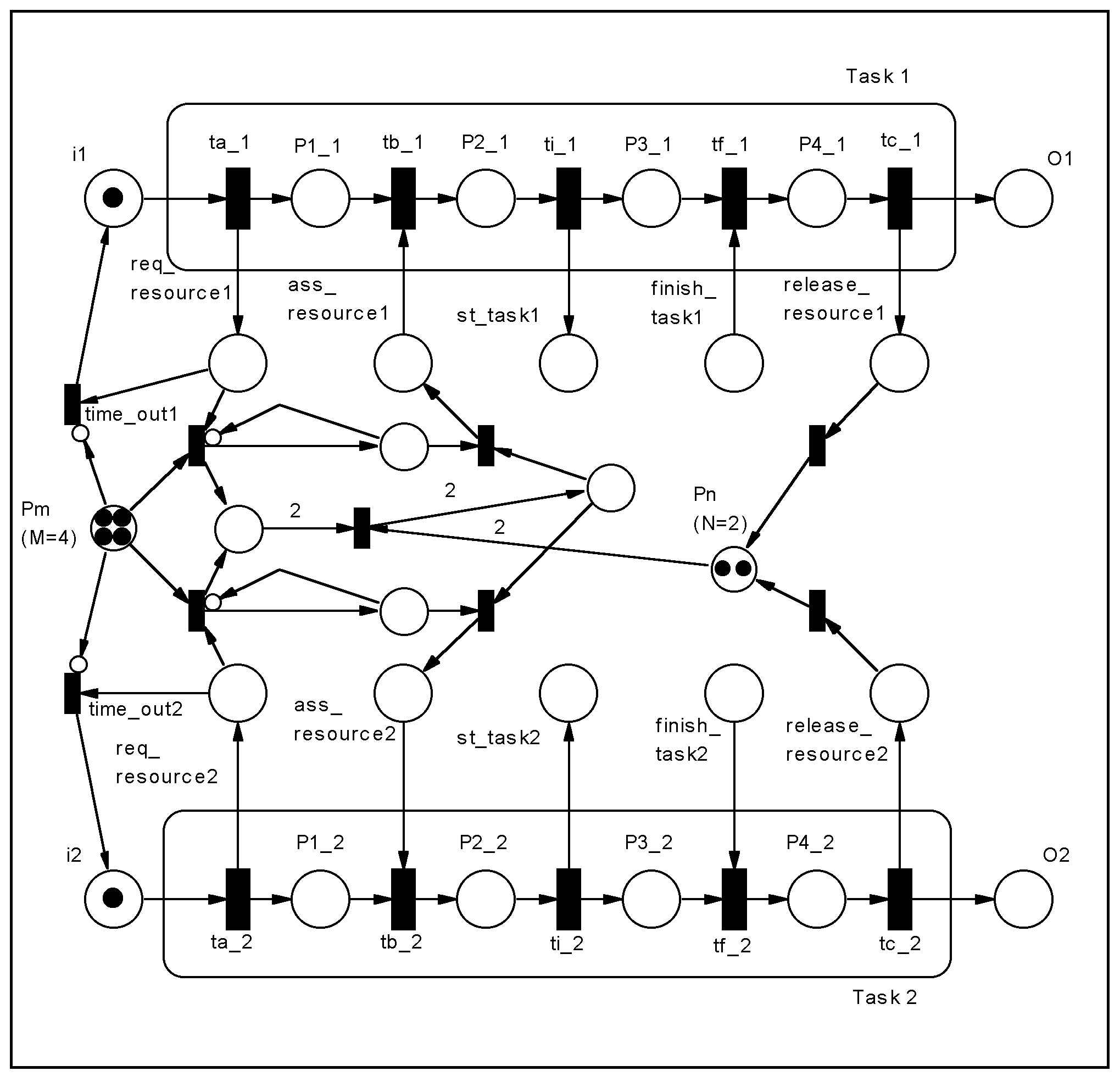

Figure 40: Simultaneity 2 + Volatility 4.
The same comparison can be made for high level PNs. The model is similar
to that of simultaneity N, adding place Pm.
